benchmarks

The cryptomatte-api is designed with speed and memory efficiency as one of it’s main concerns. As such, it is continuously checked for both of those metrics and benchmarked

Note

The benchmarks below cover only mask extraction as that is the main purpose of the library, for read performance it is best to check out the documentation of the compressed-image library as we merely wrap it for loading images.

Computer hardware

The following benchmarks were all created using the following computer specs (since it is not gpu accelerated only cpu stats are listed):

cpu: AMD Ryzen 5950x
ram: 96GB DDR4 3200MHz
storage: Samsung 980 1TB NVMe M.2 SSD

compiler: MSVC v143

Test data

The test data was generated using houdini and represents a cryptomatte with 251 total masks (250 unique rubber toys) across a variety of resolutions:

Resolutions:

• 320x180

• 640x360

• 1280x720

• 2480x1440

• 4960x2790

• 9920x5580

It was written out using 6 cryptomatte levels (12 cryptomatte channels).

Benchmarking methodology

The cryptomatte-api is benchmarked using the google-bench library and each test case is repeated 3 times for every step with the memory being clobbered in-between each run. These tests are then repeated 3 times to make sure the results were not outliers. The first result is then chosen for display.

Decoding masks compressed

Results

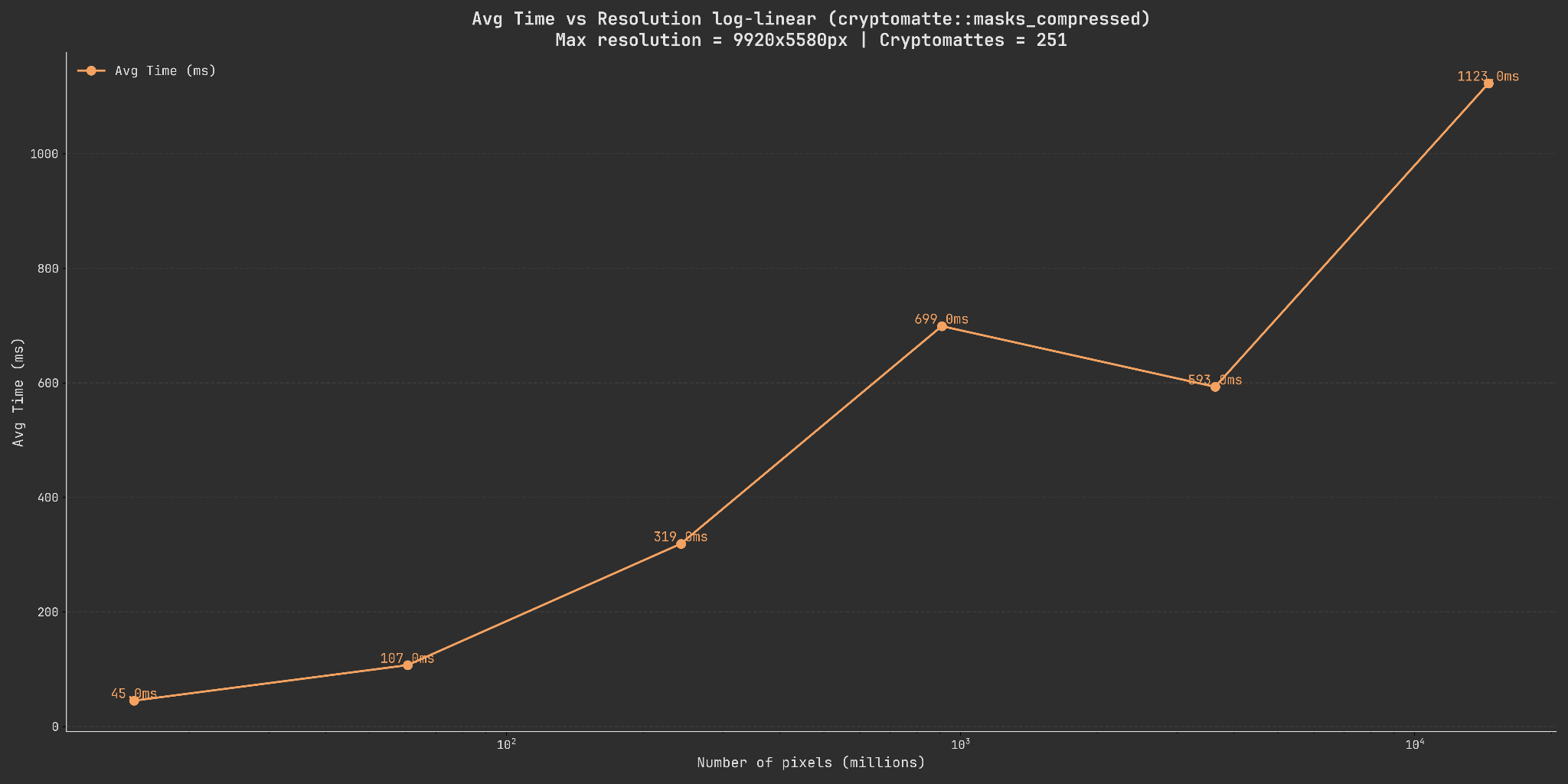

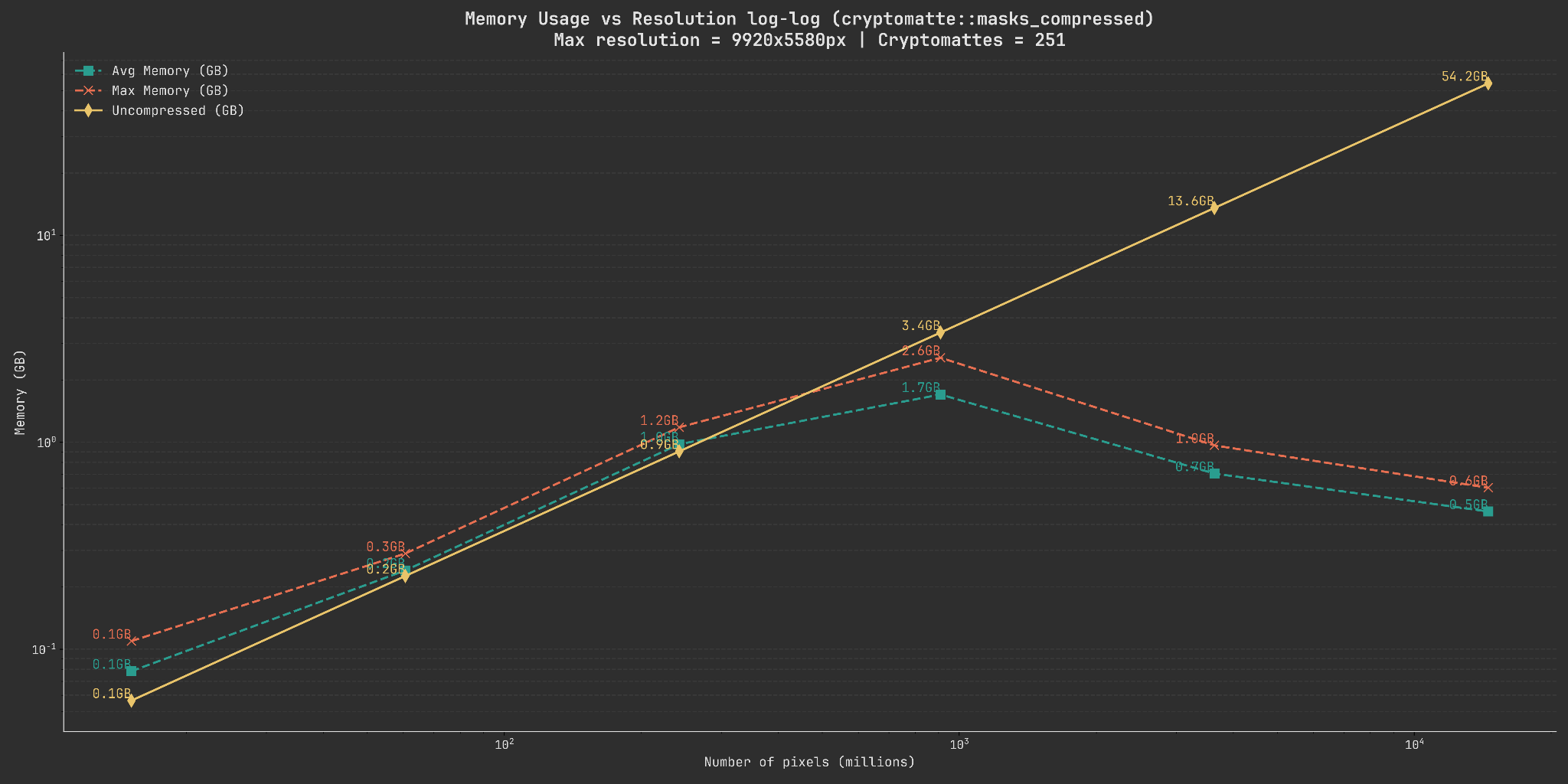

Below you can see two graphs showing both the time needed to decode all of the masks into compressed buffers as well as the relationship of pixel count to memory usage.

Note

Both of these graphs are logarithmic on the x-scale as the resolutions scale exponentially (a 2x increase between every step). The memory usage is additionally also logarithmic on the y-scale to better show the individual steps.

Explanation

When looking at the memory usage graph we see a couple of interesting things. Firstly, even as the pixel count grows exponentially, the memory usage appears to have a cutoff point where it starts decreasing again. Secondly, the speed of the decoding also seems to drop drastically at ~10^3 pixels (which in our case represents 2480x1440 pixels).

Both of these seem to happen at the same point (~13MB) and are also consistenly observable across runs on different machines.

A likely explanation for this is related to the chunk size used internally for compression and decompression.

The cryptomatte-api uses the compressed-image library as its underlying storage which uses blocking and chunking techniques to compress buffers using the lz4 algorithm. The chunk size chosen by the cryptomatte-api, which seems to perform well across a variety of test cases, is equivalent to 4MB.

Since the point at which the memory usage drops again is just past this chunk size, a likely explanation is that we are able to much more efficiently compress the data at that point. Giving us much better performance.

We also use compressed::lazy_schunk<T> internally which, if a chunk in a mask has just a single value is set to ony store that one value rather than having to store the compressed result with overhead.

Higher sample count

Let’s rerun the same benchmarks with more samples in-between as well as extending the upper range to see if we can get more information:

We can see that the same rough relationship is still there, we can also see that the memory usage only climbs marginally as we go to a higher resolution.

Comparison with ImageStacker

The previous graphs are largely meaningless without a reference point. As a point of comparison I have chosen to use the ImageStacker which is a standalone application for loading images into photoshop quickly and efficiently. The creation of this library was in large parts motivated by improving the cryptomatte decoding capabilities of it.

Note

These benchmarks are recorded before the ImageStacker had its implementation changed to use the cryptomatte-api. These results are therefore meant to show historical performance numbers.

The ImageStacker internally also compresses its buffers. However, the old implementation did not do this in chunks but instead extracted all the masks ahead of time and compressed them after.

Therefore, we have two sections here, one comparing the results of the cmatte::cryptomatte::masks_compressed function with the time it took the ImageStacker to decode and compress the data. As well as comparing it with only the decoding part.

Comparing compressed with compressed

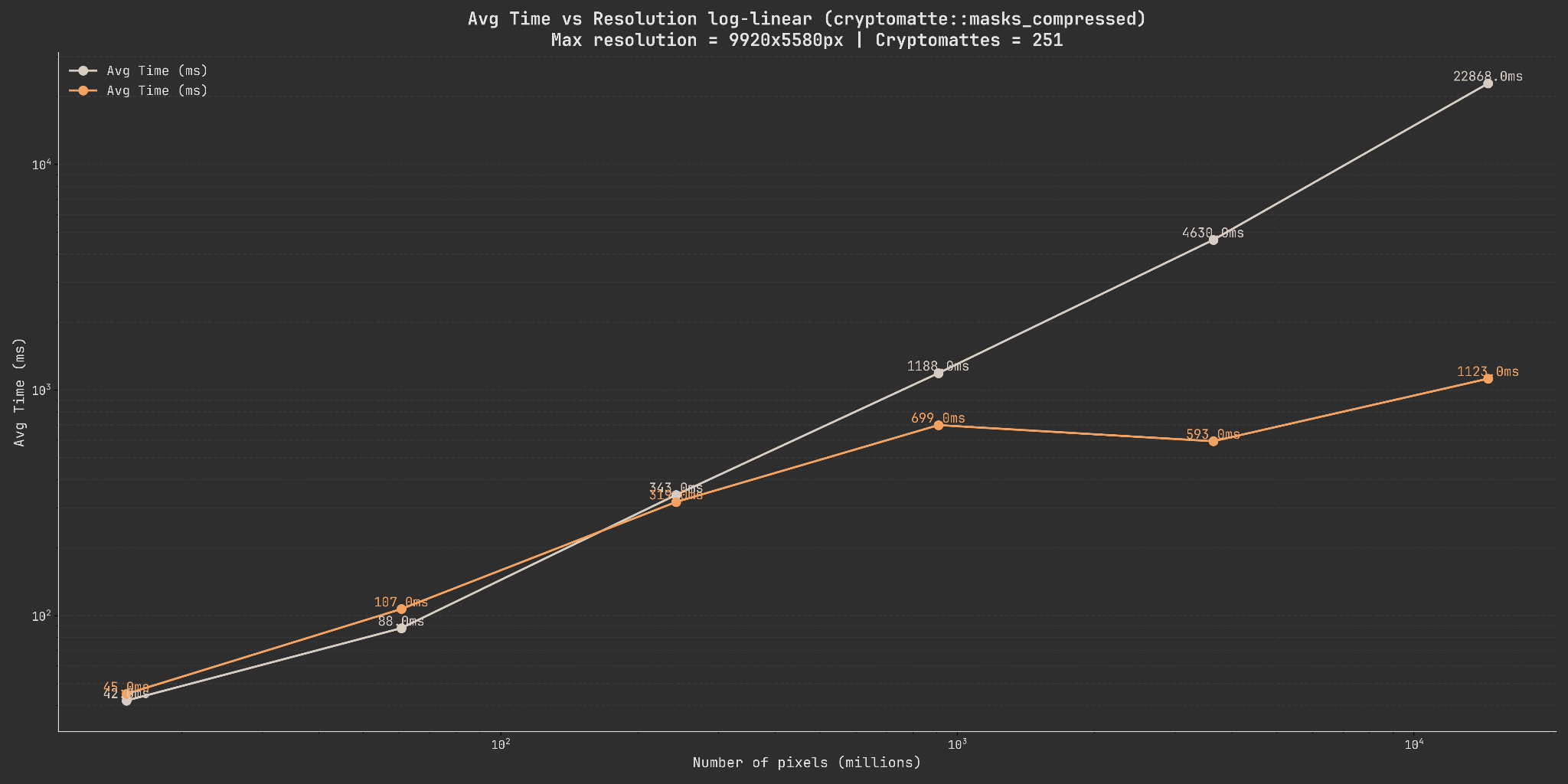

This graph compares the cryptomatte-api performance to the ImageStacker performance for both the decoding and subsequent compression.

Comparing compressed with uncompressed

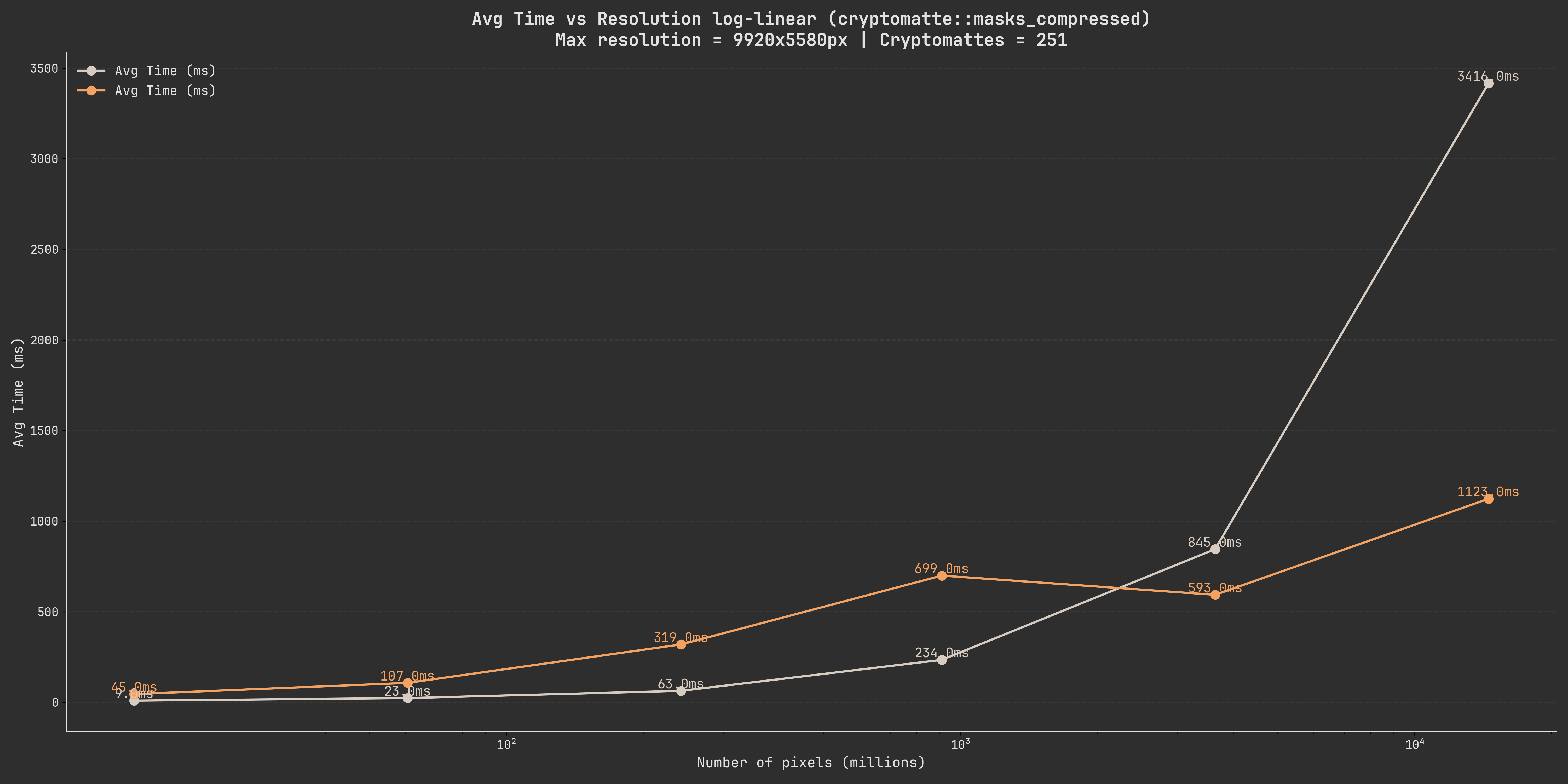

This graph compares the cryptomatte-api performance to the ImageStacker performance for the decoding but not the subsequent compression.

Note

The memory usage of the ImageStacker during these operations is identical to the theoretical one shown above so we will not be comparing those again.

Conclusion

These graphs show quite well that there is a certain cutoff point where it becomes more efficient to compress the data in-memory and operate on those buffers.

We will be comparing the performance of the cmatte::cryptomatte::masks and cmatte::cryptomatte::masks_compressed methods later to give you an idea of when you should use the compressed buffers vs the uncompressed methods.
